Pin Mill Type PST & PPST
Fine and ultra fine grinding of soft to medium hard, brittle, crystalline, moist and fatty materials.
Method of Operation
Pin Mills, type PST are used for fine to finest grinding of dry, brittle, or hard to grind materials to a fineness of d50=5 micron.
Material is fed centrically by a dosing mechanism and magnetic separator. Grinding is done by impact and whirling between the concentrically mounted pin rows of the rotating and the stationary discs. Particle size is determined by the speed, number and type of pins.

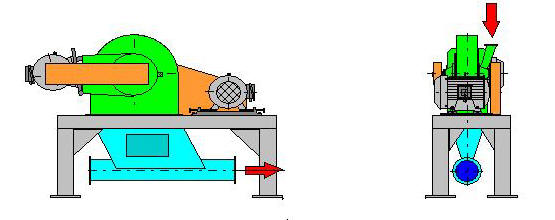

PIN Mills, type PPST are high-speed, counter-rotating machines, and they work without a screen. Pin rows, concentrically fixed on rotor and stator discs micronize the particles.
Special designs for cryogenic applications are available.
Advantages & Features
- Easy access to the grinding chamber due to large door
- Very fine powders due to high speed
- Special designs for cryogenic grinding available
Also utilized for deagglomeration, mixing and homogenizing chemical and pharmaceutical products as well as for cryogenic pulverizing applications.
- Plastics
- Food Products
- Pharmaceutical products
- Chemical Products
| Type | PST
315 |
PST
500 |
PST
630 |
PST
1000 |
PPST
250 |
PPST
315 |
PPST
400 |
PPST
630 |
|
| Scale-up Factor | f | 1.0 | 1.5 | 2.0 | 3.3 | 0.7 | 1.0 | 1.6 | 3.7 |
| Rotor Diameter | mm | 315 | 500 | 630 | 1000 | 250 | 315 | 400 | 630 |
| Motor | kW | 22 | 37 | 55 | 75 | 11+22 | 15+30 | 30+45 | 75+75 |
