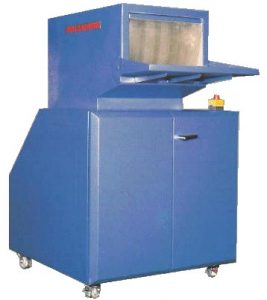

Knife Mill Type PS-U



Economical granulation of bulky up to solid plastic waste. For example, sprues, runners, thin walled injection molding waste, short pieces from pipes or profiles and thermoforming waste, etc.

Method of Operation

Material is fed by hand or with a conveyor belt.  Granulation takes place between the knives of a slant cut rotor and the bed knives.  The size of the granules produced depend on the hole size of the built in screen.

The granules are discharged into a collecting bin or as an option into a suction bin and then conveyed pneumatically to a cyclone separator.

Advantages & Features

  • Compact space saving design
  • Low feed height
  • Low noise operation
  • Fast and easy cleaning possible
  • Rugged and reliable construction

Granulation of skeletons from thermoforming lines and film waste from rolls of all types of plastic materials such as Polypropylene, Polystyrene, Polyethylene, PVC, Polyester etc.

This heavy duty granulator can also be used for cutting any other cuttable organic or inorganic material.

  • Plastics Materials
    • Thermoforming waste
    • Film Waste
  • Organic & Inorganic Materials
