Knife Mill Type PS-F
Method of Operation

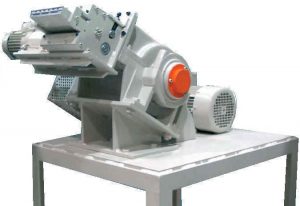

Granulators Type PS-F are used in-line or at central locations to cut film waste of all kind. They are equipped with an infeed roller system for feeding film scrap from the production line during start up. Loose film scrap can be fed by hand or with a conveyor belt.

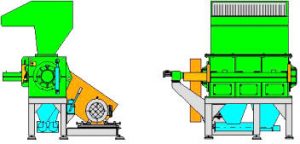

Installation of the granulator is on the production floor or in a pit. Film waste is fed with infeed rollers, by hand or with a belt conveyor. Material is size reduced between rotor- and bed knives. A screen holds material inside the grinding chamber, as long as it is too coarse. Fine material gets discharged through the screen into a pneumatic discharge system.
Size reduction of film waste of any kind
Advantages & Features
- Reliable, efficient Robust design
- An open, alternating slant cut rotor is standard.
- Bearings are outboard and no grease can enter the grinding chamber.
- Rotor knives are adjusted outside the machine. Knife gap setting inside the machine is no longer necessary. Bed knives are placed against setting blocks and again, no gap adjustment is necessary.
- The 180°-screen is symmetrical and can be used from both sides.
- The standard hole size of the screen is 6 mm ( 1/4″). Other screen sizes are available.
- The material produced has a high bulk density and is ideal for feeding a film extruder.
Plastics Materials
- PET
- A-PET
- G-PET
- PA
- PP
- BOPP
- PA
- PVC
| Type | PSF 200×150 | PSF 200×450 | PS-F 3 | PS-F 3.5 | |
| Cutting Chamber | mm | 100×150 | 100×450 | 260×250 | 300×450 |
| Rotor diameter | mm | 200 | 200 | 230 | 320 |
| Rotor Type | GS2 | GS2 | S3 | GS3 | |
| Motor | kW | 2.2 | 4.0 | 5.5-7.5 | 11-22 |
| Capacity* | Kg/h | 100-1000 | 250-3000 | 40-180 | 80-380 |
| Type | PS-F 4-5 | PS-F 4-7.5 | PS-F 4-10 | PS-F 4-12.5 | |
| Cutting Chamber | mm | 350X500 | 350X750 | 350X1000 | 350X1200 |
| Rotor diameter | mm | 400 | 400 | 400 | 400 |
| Rotor Type | GS3 | GS3 | F5 | F5 | |
| Motor | kW | 18.5-45 | 22-55 | 75-100 | 110-200 |
| Capacity* | Kg/h | 150-660 | 220-990 | 320-1480 | 400-1850 |
| Type | PS-F 6-9 | PS-F 8-12 | PS-F 8-15 | PS-F 8-18 | |
| Cutting Chamber | mm | 550X900 | 750X1200 | 750X1500 | 750X1800 |
| Rotor diameter | mm | 600 | 800 | 800 | 800 |
| Rotor Type | FW6 | FW8 | FW12 | FW12 | |
| Motor | kW | 75-110 | 110-200 | 135-250 | 160-250 |
| Capacity* | Kg/h | 400-1780 | 700-3000 | 40-180 | 80-380 |
* Throughput Rate varies depending of the feed material
