Hammer Mills Type PHM



Pulverizing of all types of brittle and fiberous, medium hard to soft materials such as annual plants, roots, chemicals, pharmaceuticals, soft minerals etc.

Method of Operation

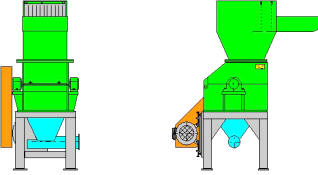

Installation of the hammermill is on the production floor or in a pit. Feeding is done manually. An infeed chute for belt conveyor feeding is available. Material is size reduced by impact with fast rotating, free swinging type hammers. A screen holds material inside the grinding chamber, as long as it is too coarse. Fine material gets discharged through the screen into a pneumatic discharge system. Bottom discharge onto a mechanical conveyor or into a bin is available.

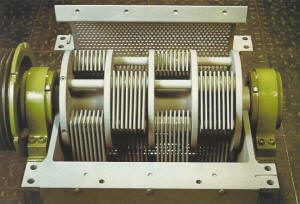

An open rotor with hammers having a thickness of 8 mm is standard. Bearings are outboard and no grease can enter the grinding chamber. Hammers come in sets of equal weight.

The screen has a maximum open area for maximum capacity. The standard hole size of the screen is 10 mm ( 3/8″). Other screen sizes are available.

Advantages & Features

  • Low in-feed height
  • Positive in-feed of material
  • No adjustments inside the machine necessary
  • Good access to the grinding chamber for easy cleaning
  • Safety switches for maximum operator protection
  • Steel fabricated design, rugged and reliable
  • Compact space saving design

Pulverizing of all types of brittle and fiberous, medium hard to soft materials such as annual plants, roots, chemicals, pharmaceuticals, soft minerals etc.

This hammermill can also be used for fiberizing cellulose, leather waste and any other cuttable organic or anorganic material.

  • Chemicals
  • Pharmaceutical products
  • Food
  • Minerals
  • Wood

Type PHM 4-5 4-7.5 4-10
Scale-up Factor f 1.0 1.5 2.0
Infeed opening mm 330-500 330-750 330-1000
Rotor Diameter mm 400 400 400
Rotor Width mm 500 750 1000
Motor kw 22-37 30-45 45-75
Throughput Rate * kg/h 500-800 750-1200 1000-16000

* Throughput Rate based on screen size of 10 x 10 mm and may vary depending of the feed material
