Chipper, PHK
Cutting of all types of plastic materials, as well as cuttable organic and inorganic materials

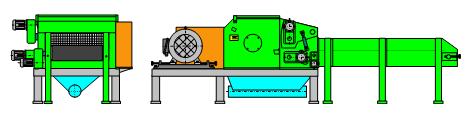

Installation of the chipper is on the production floor or on top of a pit. Feeding is done with a belt conveyor. In-feed rollers grab the material and move it towards the rotor of the chipper. Material is size reduced between rotor and bed knives. A screen holds material inside the cutting chamber, as long as it is too coarse. Fine material gets discharged through the screen into a pneumatic discharge system. Bottom discharge onto a mechanical conveyor or into a bin is available.
Advantages & Features
- Defined granule size depending on the chosen size of the screen, therefore no overs in the end product
- Load-controlled material feeding via conveyor belt and draw-in rollers
- Easy, horizontal feeding or optional feeding from the top
- Rugged and reliable construction, designed for operation in harsh environments
- Easy screen and knife exchange due to maintenance-friendly construction
- No knife setting necessary in the machine
- High economic efficiency and throughput rate
- Plastic Materials: Sheets, Profiles, Foam, Floor Covering Products, Carpet Waste
- Organic & Inorganic Materials: Cellulose rolls, Cellulose Sheets
- Other: Copper Cables, Copper Foil
Type | PSRH | 6-9 | 6-12 | 12-8 | 16-12 | 22-18 |
---|---|---|---|---|---|---|
Feed Hopper Opening | mm | 2000×730 | 2000×1150 | 4000×1050 | 4000×920 | 3500×1600 |
Rotor Diameter | mm | 600 | 600 | 1200 | 1600 | 2200 |
Rotor Length | mm | 900 | 1200 | 800 | 1200 | 1800 |
Motor | kW | 75 | 110 | 160 | 200 | 540 |
Throughput Rate* | kg/h | 500-2000 | 650-2600 | 1000-4000 | 1750-7000 | 3000-1200 |
Weight | kg | 8300 | 10300 | 18300 | 29200 | 85000 |
Machine Dimensions ( LWH ) | mm | 5670x3720x3640 | 6140x4030x3640 | 10695x3100x2755 | 12000x4830x4000 | 16340x6500x5240 |
