Pre-cutters, Crushers & Shredders
Size reduction of lumpy materials at high throughput rates
PALLMANN manufactures Pre-cutting mills, Shredders, and Chippers for the size reduction of lumpy materials at high throughput rates; this allows further processing such as dosing, fine grinding, agglomeration, or facilitates the transportation, mixing or storage of the material.
Single Shaft Shredder, PLS
Coarse size reduction of soft to medium hard, crystalline and brittle coarse materials as well as deagglomeration of lumped products.
Double Stream Mill Type PSKM & PPSM
Method of Operation With the PALLMANN double stream mill the feed material is reduced through a new, pioneering principle. The fan effect of a multiple wing impeller pulls the feed material centrally into the grinding […]
Chipper, PHK
Cutting of all types of plastic materials such as sheet, profile, foam, as well as copper cables, copper foil, cellulose sheet, cellulose rolls etc.
Drum Shredder, PTR
Reduction of chemical base materials, salts, minerals and lumpy products at high throughput rates.
Crusher, PBEW
Crushing of bulky materials.
Double Shaft Shredder, PSD
Economical size-reduction of waste materials. i.e. plastic scrap, rubber, glass, ceramics, tin, household garbage, cable waste, tires, rendering waste, etc.
Double Shaft Crusher, PDWB
Production of powders with narrow particle size distributions from brittle and crystalline materials.
Horizontal Knife Mill. PSRH
One step size reduction of waste in bulk form and in
form of pressed bales.
Granulators
PALLMANN Ultra-Granulators™ offer optimum performance in the broadest spectrum of application fields; such as plastics, chemicals, minerals, foods, wood, etc.

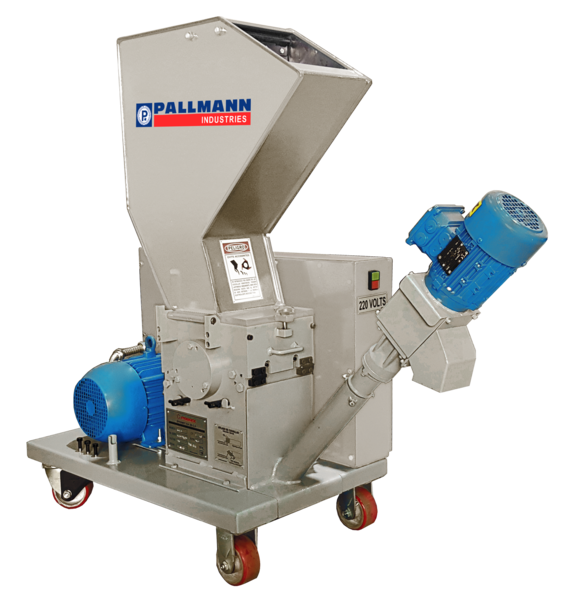

Pallmann PP 16 & 20 Series of Granulators for Processing Plastics
Pallmann PP Series 16 and 20 are designed for the requirements of the injection molding industry. Feeding can be performed by means of sprue puller systems with conveyor belts, part robots or by hand. The […]

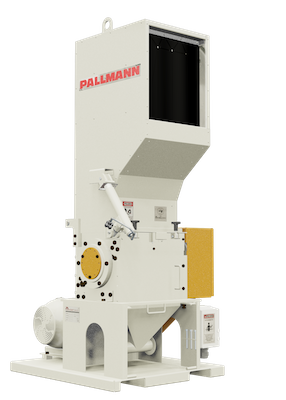

Pallmann TXX 25 Series of Granulators for Processing Plastics
Pallmann TXX Series 25 is designed for a variety of applications from injection molding and thermoforming industry. Feeding can be performed by hand or with conveyor belts, feed rolls or robots. The product is discharged […]

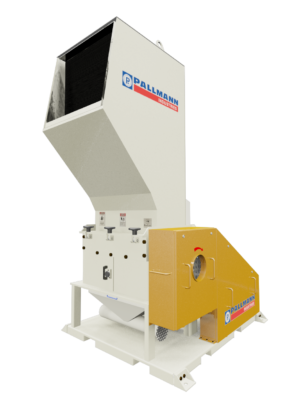

Pallmann TXX 40 Series of Granulators for Processing Plastics
Pallmann TXX 40 Series granulators offer economical size reduction of in-line as well as off-line recycling of intermediate and larger parts to sheet or thermoforming web in wider models. Heavy-Duty design with oversized bearings and […]

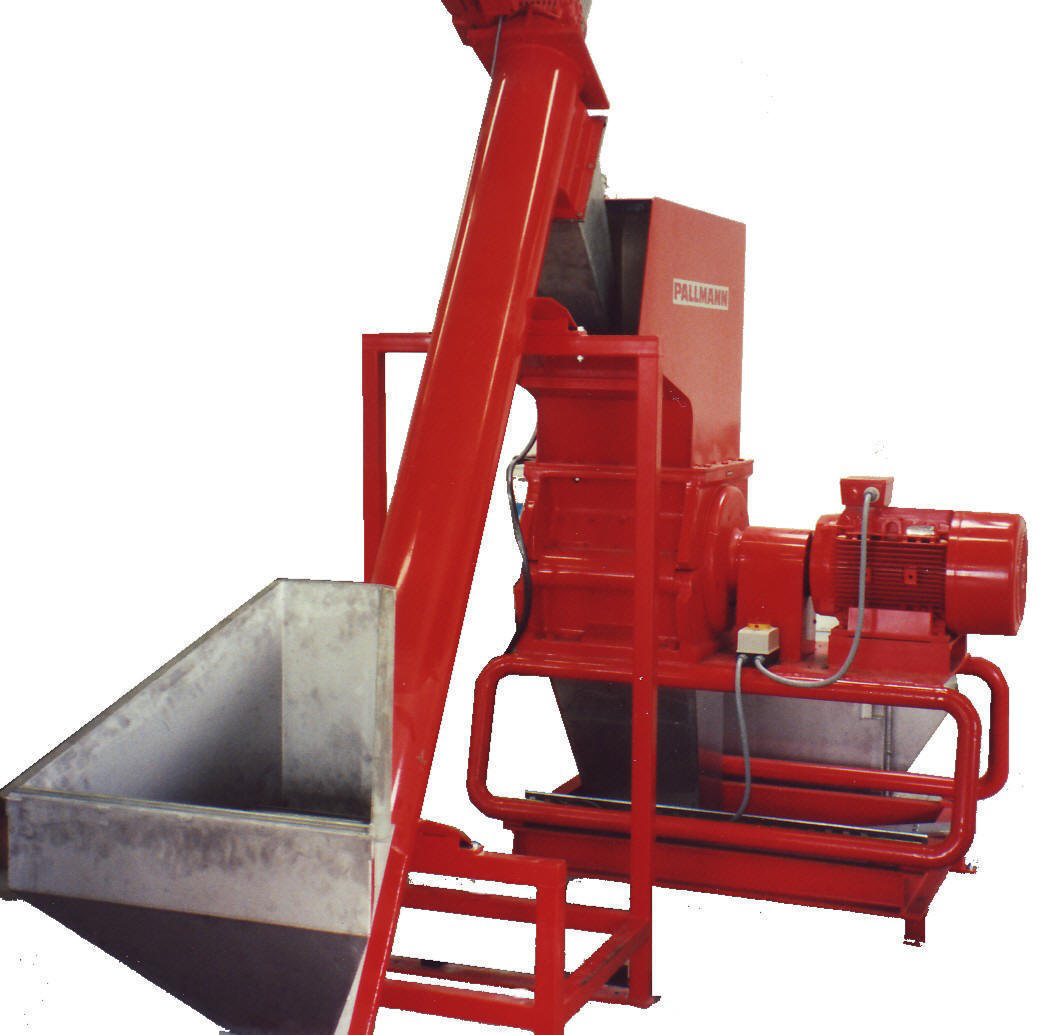

Knife Mill Type PS Series 300
Size reduction of compact, bulky or voluminous materials, which can be cut, into clean-cut homogeneous granules. The size reduction takes place between the knives of the fast rotating rotor and the stationary housing knives. The […]

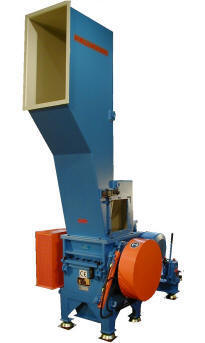

Knife Mill Type PS Series 400
The material is fed in the knife mill via the feed chute or by means of intake devices. The feed chutes can be designed for manual feeding or for feeding via a conveyor belt. The […]
Knife Mill Type PS Series 600
Size Reduction of voluminous, bulky parts and tough feed materials

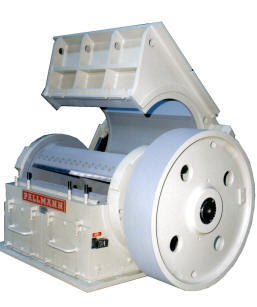

Knife Mill Type PS Series 800-1200
Size reduction of massive and fused lumps, and bulky materials
Knife Mill Type PS Series B
Size reduction of plastic waste material of any kind such as heavy compact lumps, light weight bulky parts, bottles, film waste, and other voluminous waste

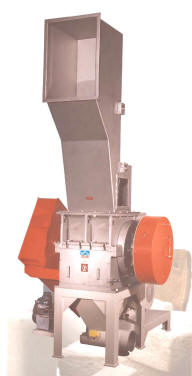

Ultra-Granulator Type PS-C
Size reduction of plastic waste material of any kind such as heavy compact lumps, light weight bulky parts, bottles, film waste, and other voluminous waste

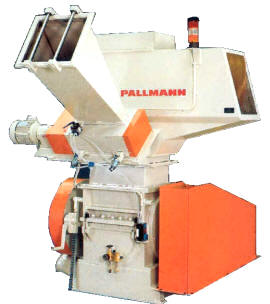

Knife Mill Type PS-F
Size reduction of film waste of any kind
Knife Mill Type PS-H
Granulating of all types of plastic materials such as thick-walled injection molding waste, purging waste, waste from pipe, profile and sheet extrusion, baled plastic bottle waste, Carpet waste, film waste, on and off-line etc.
Knife Mill Type PS-I
Granulating of all types of plastic materials such as thick-walled injection molding waste, purging waste, waste from pipe, profile and sheet extrusion, baled plastic bottle waste, film waste on and off-line etc.
Knife Mill Type PS-K
Granulation of light voluminous materials, such as containers, bottles, molded parts, sprues and runners, thermoforming waste, film waste and many others.
Knife Mill Type PS-L
Granulation of sprues and runners and thin walled molded parts made of brittle as well as tough plastic materials.

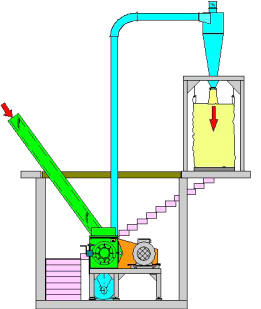

Sheet Granulator Type PS-P
Granulation of sheet waste
Knife Mill Type PS-R
Method of Operation Production waste, as well as rejected pipes, pipe bends, socket ends, etc., occurring during the manufacturing of plastic pipes, can be economically size reduced, at low cost, with PALLMANN pipe crushers. […]
Knife Mill Type PS-S
Method of Operation Sprues and runners are fed into the cutting chamber with a large diameter auger. Even bulky material will be accepted thru the large feed opening. granulation takes place between the knives of […]

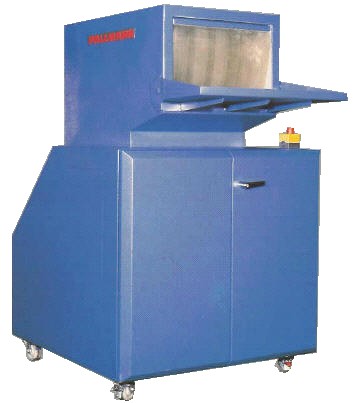

Knife Mill Type PS-U
Method of Operation Material is fed by hand or with a conveyor belt. Granulation takes place between the knives of a slant cut rotor and the bed knives. The size of the granules produced depend […]
Knife Mill Type PS-V
Method of Operation Installation of the granulator is direct on the production floor or in a pit. Feeding is done manually or with a belt conveyor. Material is size reduced between rotor- and bed knives. […]
Knife Mill Type PS-W
Method of Operation Installation of the granulator is on the production floor. Feeding is done manually or with a belt conveyor. Material is size reduced between rotor- and bed knives. A screen holds material inside […]
Pulverizers
PALLMANN manufactures Pre-cutting mills, Shredders, and Chippers for the size reduction of lumpy materials at high throughput rates; this allows further processing such as dosing, fine grinding, agglomeration, or facilitates the transportation, mixing or storage of the material.
Universal Mill Type PXL & PPXL
The size of the in-feed material has to be smaller than 6 mm (¼”). Typical particle sizes that can be achieved are in the range of 2000 to 100 micron (10 to 170 mesh). […]
PKM Pulverizer – PolyGrinder™
Method of Operation The PolyGrinder® pulverizing systems, type PKMM 300 R, PKMM 600 R and PKMN 800 R are designed to produce powders from polyethylene with a 500 micron (35 mesh) top cut, which is perfect for rotational […]
Agglomeration Systems
PALLMANN manufactures Pre-cutting mills, Shredders, and Chippers for the size reduction of lumpy materials at high throughput rates; this allows further processing such as dosing, fine grinding, agglomeration, or facilitates the transportation, mixing or storage of the material.

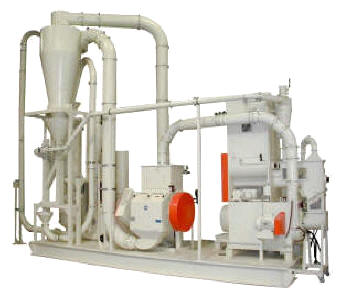

The Plast-Agglomerator Type PFV
Continuous production of free flowing granules from thermoplastics of all kinds
Ultra Fine Powder Technology
PALLMANN manufactures Pre-cutting mills, Shredders, and Chippers for the size reduction of lumpy materials at high throughput rates; this allows further processing such as dosing, fine grinding, agglomeration, or facilitates the transportation, mixing or storage of the material.
Turbo Mill Type PP
Adjustment of the Gap Side Discharge Bottom Discharge Method of Operation Turbo Mills, type PP are attrition and impact mills. The material is centrically fed to the machine […]
Turbo Mill Type REF
Adjustment of the Gap Side Discharge Bottom Discharge Method of Operation Turbo Mills, type REF are attrition and impact mills. The material is centrically fed into the […]

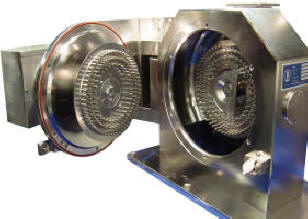

Pin Mill Type PST & PPST
Method of Operation Pin Mills, type PST are used for fine to finest grinding of dry, brittle, or hard to grind materials to a fineness of d50=5 micron. Material is fed centrically by a dosing […]

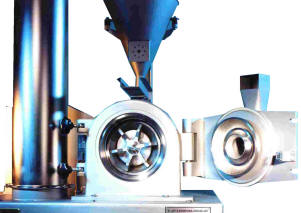

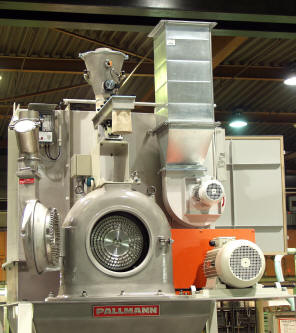

Universal Mill Type PX
Method of Operation Material is gravity fed into the center of a grinding chamber and size reduced by impact, which takes place between the interchangeable grinding elements of a rotor and a stator arrangement. Pulverized […]

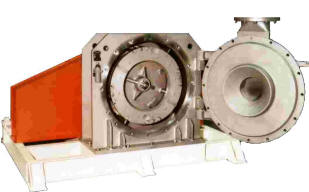

Contra Selector Mill Type PPS & PPSR
Method of Operation Material must be metered into the machine. Inside the grinding chamber an impeller accelerates the material and throws it against a rotating screen basket. Due to high impact and sheering forces created […]

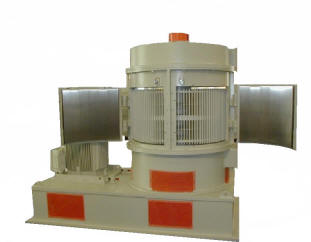

Turbofiner Type PLM
Method of Operation Material is fed into the grinding chamber with a screw feeder and is pulverized inside the grinding chamber in a high activity whirl created between the stationary and rotating grinding elements of […]
Hammer Mills Type PHM
Method of Operation Installation of the hammermill is on the production floor or in a pit. Feeding is done manually. An infeed chute for belt conveyor feeding is available. Material is size reduced by impact […]

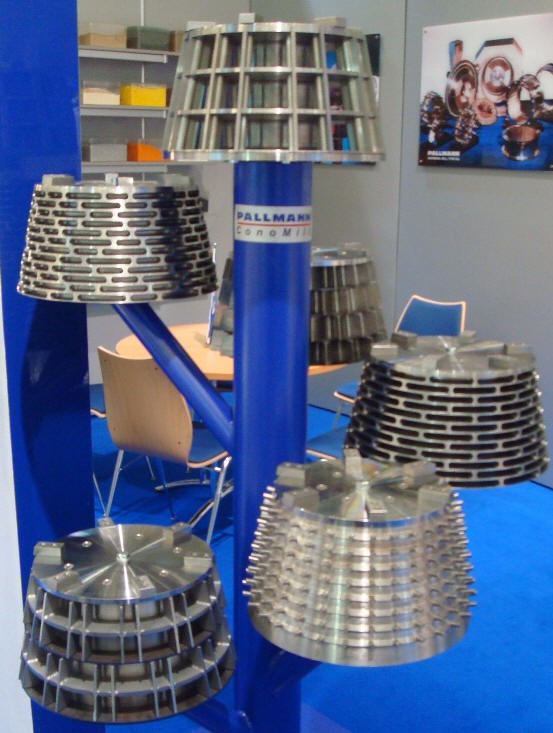

ConoMill™ Type PLK
Method of Operation There are various ways to dose the feed material into the mill according to the requirements, such as vibratory feeder, feed screw or a rotary air lock. The rotor is aligned […]

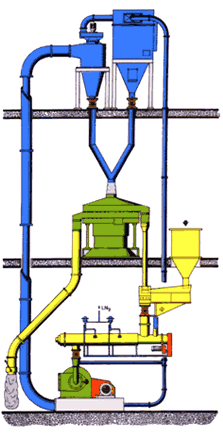

Cryogenic Grinding
Cryogenic Grinding Installations PALLMANN supplies standard cryogenic grinding installations for temperatures of below -100 oC in compact design. PALLMANN has developed this technology in their own custom grinding facilities. Cryogenic grinding installations are used for: Polyester […]
UFP Info
Whenever fine and ultra-fine powders are produced, handled or required, processing technology from PALLMANN leads the way and sets standards with economical solutions. It is our philosophy to provide environmentally friendly systems. Therefore, careful consideration […]
